Amberg Profile

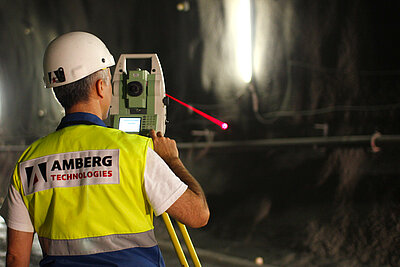

Import measured profiles, deliver results. That is the everyday job of a tunnel surveyor. Amberg Profile gives you the tools to do the job efficiently and delivers high-quality results.

The office software Amberg Profile imports profiles measured in the tunnel, processes the data, and instantly delivers reports and calculations.

Seamless workflow with Amberg Navigator or Amberg Applications automatically imports profiles into the correct construction stages. Pre-defined profile analyses allow immediate export of graphical profile reports, volume calculations, and 2D or 3D CAD drawings. All the measured data are stored in the database and are available for further processing (for example layer thickness calculation) or documentation purposes. Amberg Profile is part of Amberg Tunnel office software.

Interested in Amberg Tunnel solution?

Philippe Matter is happy to talk to you. Get in touch! Or download the software with a demo license and get hands on!

Send me an email

Downloads

  • The software package is tailored to your needs in terms of profile analysis
  • Quick results for surveying and frequently repeated tasks
  • Full 3D calculations also support complex projects such as power plant and power station construction
  • Flexible report generation for project-specific requirements
Amberg Technologies – Vermessung – Geomatik – Digitale Infrastruktur – Bahntechnik – Amberg Rail – Gleisvermessung – Gleisinspektion – Gleisdokumentation – Gleisgeometrie EN 13848 – Railway Track Survey – Railway Track As-Built – Railway Track Measurement – Track Measurement Trolley – Railway Track Alignment – Track Defects – Track Documentation – Track Cant Measurement – Track Gauge Measurement – Slab Track Adjustment – Slab Track Acceptance – Railway Tamping Measurement – Structural Gauging – Railway Track Clearance – Clearance Analysis – Dynamische Durchfahrtsräume – Dynamic Clearance – Dynamic Envelope – IMU – Inertial Measurement Unit – Tunnelbau – Amberg Tunnel – Tunnelvermessung & Monitoring – Tunnel Laser Scanning – Tunnelprofile – Tunnel Excavation Control – TBM – Drill and Blast – Shotcrete – Spritzbeton – Geophysik – Amberg TSP – Tunnel Seismic Prediction – Geological Forecasting – Fault Detection – Rock Mass – Impact Hammer – Continuous Forecasting – Digitale Zwillinge – Präzisionsmessung – Monitoring-Lösungen – Civil Engineering – Innovation im Untertagebau – High-Accuracy Surveying Systems
  • Fully integrated work procedure and data flow with Amberg Navigator and Amberg Applications
  • Independent from the instrument thanks to a flexible interface and the support of many standard import formats
  • Use of the design data for numerous other Amberg applications
  • The use of Amberg Profile reduces the number of software packages involved in the work procedure, which brings cost savings for licenses and a reduction in the amount of training that is required.
  • The simplified data flow significantly reduces the effort and processing time required between the measurement and the delivery to the client

Amberg Profile Software

Amberg Technologies – Vermessung – Geomatik – Digitale Infrastruktur – Bahntechnik – Amberg Rail – Gleisvermessung – Gleisinspektion – Gleisdokumentation – Gleisgeometrie EN 13848 – Railway Track Survey – Railway Track As-Built – Railway Track Measurement – Track Measurement Trolley – Railway Track Alignment – Track Defects – Track Documentation – Track Cant Measurement – Track Gauge Measurement – Slab Track Adjustment – Slab Track Acceptance – Railway Tamping Measurement – Structural Gauging – Railway Track Clearance – Clearance Analysis – Dynamische Durchfahrtsräume – Dynamic Clearance – Dynamic Envelope – IMU – Inertial Measurement Unit – Tunnelbau – Amberg Tunnel – Tunnelvermessung & Monitoring – Tunnel Laser Scanning – Tunnelprofile – Tunnel Excavation Control – TBM – Drill and Blast – Shotcrete – Spritzbeton – Geophysik – Amberg TSP – Tunnel Seismic Prediction – Geological Forecasting – Fault Detection – Rock Mass – Impact Hammer – Continuous Forecasting – Digitale Zwillinge – Präzisionsmessung – Monitoring-Lösungen – Civil Engineering – Innovation im Untertagebau – High-Accuracy Surveying Systems

Your tunnel under control

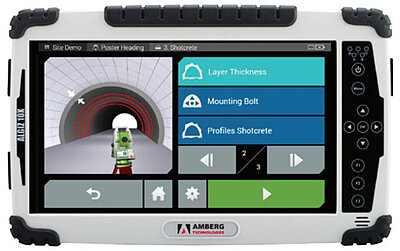

Amberg Profile is a powerful part of the office software Amberg Tunnel. With Amberg Profile, the measured profiles processing, analysing and reporting is fast and easy. The seamless transfer from Amberg Tablet or Amberg Applications makes the whole workflow even more efficient.

Download the Amberg Tunnel software

Frequently Asked Questions

Profile Basic covers management, analysis and reporting of measured profiles, with automated sync to Navigator Tablet. Profile Plus adds more analysis types and advanced data export.

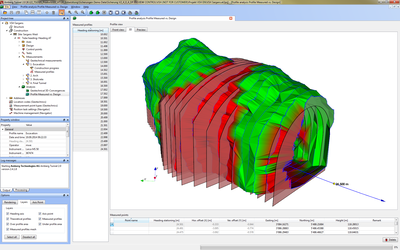

Four: Measured vs. design, Measured vs. measured, Geological overprofile and Circularity.

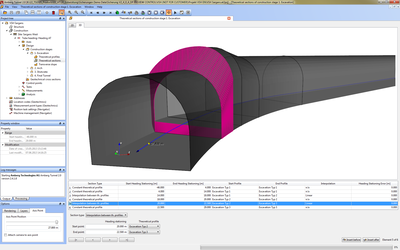

The Reference construction stage. Its theoretical profiles, theoretical sections, transverse slope and block information are used for all calculations; other stages' profiles can be shown for information only.

With a Measured vs. measured analysis, e.g. "Excavation" as the original construction stage and "Shotcrete" as the comparison stage.

The Swiss norm SIA 198. Drill & blast headings use offsets "d" and "D" from the theoretical profile to borderlines "g" and "G"; TBM headings use offset "D" only.

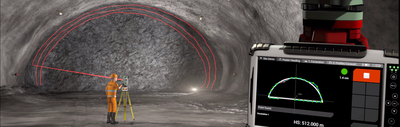

Sync with Navigator Tablet, import from Amberg Applications, the flexible ASCII import wizard, or profiles sliced from point clouds (e.g. PTS, MS50/60, LAS/LAZ) at a set start/end stationing, interval and profile cut thickness.

Only if it stores positioning information (Amberg Applications: Leica Resection; Navigator Tablet: Tripod manual, Tripod automatic, Console manual) and the control points used exist in the project's Control points editor.

An analysis keeps its settings; reopening it after new imports recalculates all diagrams. Example: a daily report using the "Excavation" stage with a dynamic one-day temporal filter.
